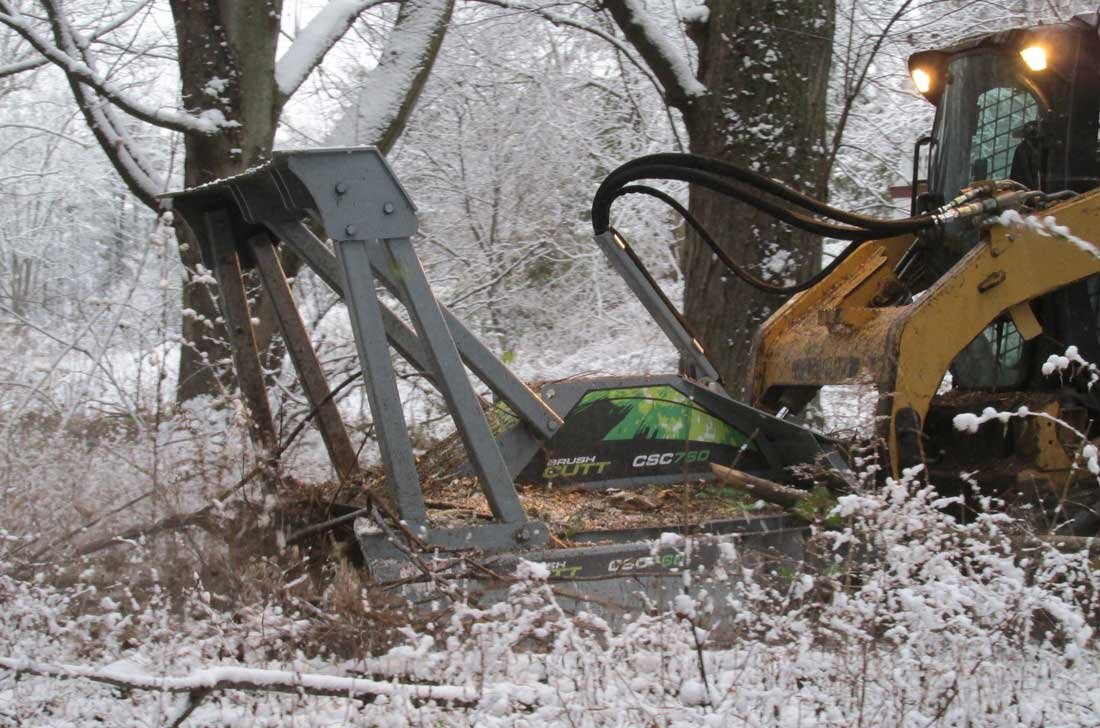

Bauma Light CSC760

1" Thick Steel Rotor Disc

The massive 1 inch thick steel rotor is impressively rugged and will remain solid with no flexing to provide the CSC744 the extra momentum it needs to power through the thickest brush.

Bent Axis Piston Motor

Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

Large Bearing Support

Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing a substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system. No belt to tighten or pulleys to adjust making for very low maintenance and using only one impressively well protected bearing for the entire machine.

700 Series Ripper Teeth

Unique to the 700 Series teeth is the Cup and Cone mount, which is machined into the holder and forged into the teeth. Engineered to take all the strain off the mounting bolt and eliminating shearing forces, these carbide teeth are bolted in place.

Option to change out for 700 series planer teeth

Baumalight gives you the option to change out the ripper teeth for the planer style for a sharper bite with a smoother cut, but these teeth are more vulnerable to damage from rocks. Ripper teeth handle rocks much better, so Planer teeth are only recommended for cutting applications where efficiency is more important than tooth life.

Easy Tightening

Most teeth on the CSC744 can be tightened with an air impact drill. The bolt-on design allows for the simply servicing right in the field.

Hose support on greased pin

All hoses are sleeved for operator and hose protection. The Connecting hoses are sleeved and wrapped in hose armour for double protection and a pivoting arm with greasable pin keeps the slack out of the way, protecting the hoses from pinching and strain. Ships with double shielded hoses.
